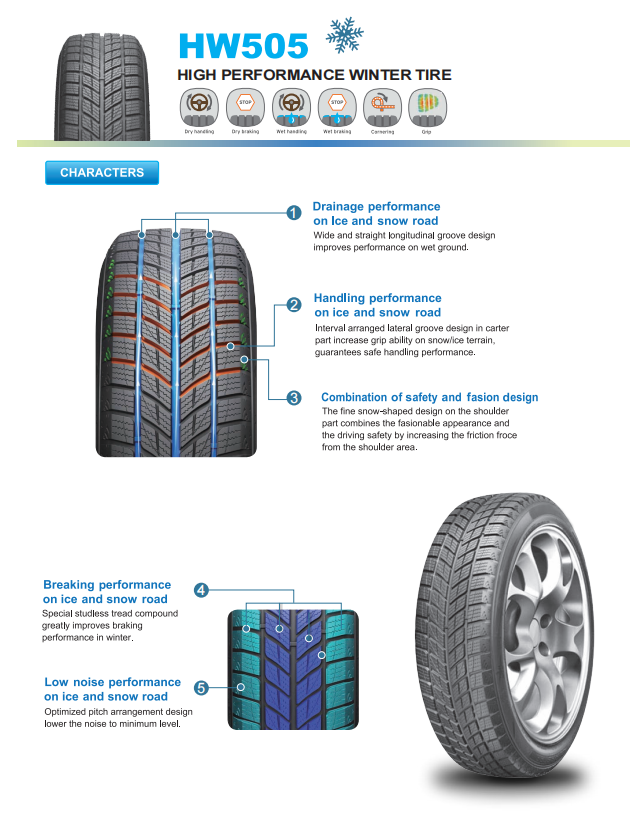

HW505

HW505

HW505

Select the number of specifications

Please check the product information you want!

Product Detail

SERIE PATTERN RIM SIZE LOAD
SPEED		 Std. Rim Section Width
(mm)		 Overall Diameter (mm) Standard Pressure
(Kpa/PSI)		 DECIBEL Noise Class WET RR WEIGHT（KG)
SNOW HW505
205/50R17 93H XL 6 1/2J 214 638 340/50 72 B C D 10.1
SNOW HW505 215/45R17 91H XL 7J 213 626 340/50 72 B C D 9.72
SNOW HW505 215/50R17 91H 7J 226 648 300/44 72 B C D 10.27
SNOW HW505 225/45R17 94H XL 7 1/2J 225 634 340/50 72 B C D 10.5
SNOW HW505 225/50R17 98H XL 7J 233 658 340/50 72 B C D 10.75
SNOW HW505 225/55R17 101H XL 7J 233 680 340/50 72 B C D 11.48
SNOW HW505 235/45R17 97V XL 8J 236 644 340/50 72 B C D 11.1
SNOW HW505 235/55R17 103H XL 7 1/2J 245 690 340/50 72 B C D 11.8
SNOW HW505 255/45R17 102T XL 8 1/2J 255 662 340/50 73 B C D 12.03
SNOW HW505 18 215/55R18 95H 7J 226 693 300/44 72 B C D 10.68
SNOW HW505 225/45R18 95T XL 7 1/2J 225 659 340/50 72 B C D 10.5
SNOW HW505 235/50R18 97H 7 1/2J 245 693 300/44 72 B C D 12.06
SNOW HW505 235/55R18 104T XL 7 1/2J 245 715 340/50 72 B C D 12.67
SNOW HW505 245/40R18 93H 8 1/2J 248 653 300/44 72 B C D 11.15
SNOW HW505 245/45R18 96T 8J 243 677 300/44 72 B C D 11.66
SNOW HW505 255/55R18 109T XL 8J 265 737 340/50 73 B C D 13.84
SNOW HW505 19 235/50R19 99H 7 1/2J 245 719 300/44 72 B C D 12.34
SNOW HW505 235/55R19 105T XL 7 1/2J 245 741 340/50 72 B C D 13.31
SNOW HW505 255/45R19 100H 81/2J 255 713 300/44 73 B C D 12.61
SNOW HW505 255/50R19 107T XL 8J 265 739 340/50 73 B C D 13.92
SNOW HW505 255/55R19 107H 8J 265 763 300/44 73 B C D 14.17
SNOW HW505 20 235/55R20 102H 71/2J 245 766 300/44 72 B C D 13.44
SNOW HW505 255/45R20 105T XL 8 1/2J 255 738 340/50 73 B C D 13.53
SNOW HW505 255/50R20 109H XL 8J 265 764 340/50 73 B C D 14.99
SNOW HW505 255/55R20 107H 8J 265 788 300/44 73 B C D 14.77
SNOW HW505 275/40R20 102T 9 1/2J 278 728 300/44 73 B C D 14.17
SNOW HW505 275/45R20 110H XL 9J 273 756 340/50 73 B C D 14.61
SNOW HW505 315/35R20 106T 11J 320 728 300/44 74 B C D 15.76
